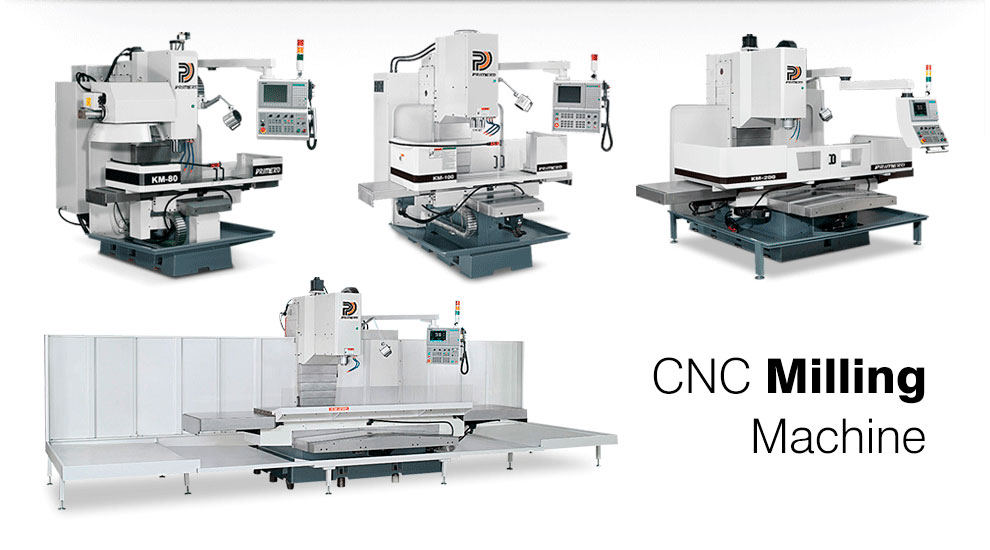

Фрезерные станки с ЧПУ

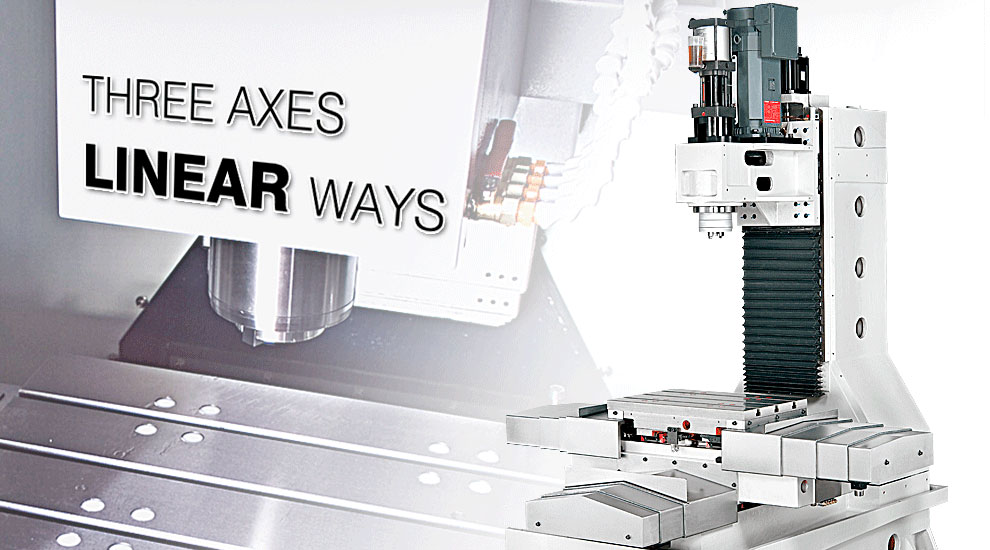

KM-80 | KM-100 | ||
TABLE | Table surface | 355 x 1270 mm | 406 x 1370 mm |
T-slot | 16 / 3T | 16 / 3T | |
Table load capacity | 500 kg | 600 kg | |
TRAVELS | X-axis travel | 800 mm | 1000 mm |
Y-axis travel | 400 mm | 500 mm | |
Z-axis travel | 450 mm | 530(620) mm | |
Spindle center to column | 400 mm | 500 mm | |
Spindle nose to table | 100~550 mm | 100~630 mm | |
SPINDLE | Taper of spindle nose | BT40 ( Opt. CAT40 or DAT 40 ) | |
Spindle speed | 6000 RPM ( Opt. 8000rpm or 10000rpm ) | ||
FEED | Rapid on X, Y, Z axis | 8000 mm/min (Opt. 20000 mm/min) | |
MOTOR | Spindle motor | 7.5 HP | 10 HP |
GENERAL | Power required | 15 kva | 15 kva |
Machine weight | 2500 kg | 3000 kg | |
Measurement ( L x W x H ) | 1950 x 2100 x 2200 mm | 2080 x 2280 x 2200 mm |
KM-120 | KM-150 | KM-158 | ||
TABLE | Table surface | 420 x 1600 mm | 450 x 1800 mm | 610 x 1854 mm |
T-slot | 16 / 5T | 16 / 5T | 18 / 5T | |
Table load capacity | 850 kg | 1000 kg | 600 kg | |
TRAVELS | X-axis travel | 1300 mm | 1500 mm | 1500 mm |
Y-axis travel | 635 mm | 650 mm | 850 mm | |
Z-axis travel | 620 mm | 620 mm | 710 mm | |
Spindle center to column | 600 mm | 630 mm | 870 mm | |
Spindle nose to table | 100~720 mm | 100~720 mm | 100~810 mm | |
SPINDLE | Taper of spindle nose | BT40 ( Opt. CAT40 or DAT 40 ) | ||
Spindle speed | 6000 RPM ( Opt. 8000rpm or 10000rpm ) | |||
FEED | Rapid on X, Y, Z axis | 8000 mm/min (Opt. 20000 mm/min) | ||
MOTOR | Spindle motor | 10 HP | 15 HP | 15 HP |
GENERAL | Power required | 20 kva | 20 kva | 20 kva |
Machine weight | 4000 kg | 4500 kg | 6000 kg | |
Measurement ( L x W x H ) | 2510 x 2200 x 2400 mm | 3000 x 2280 x 2550 mm | 3000 x 2280 x 2550 mm |
KM-170 | KM-200 | ||
TABLE | Table surface | 762 x 1830 mm | 810 x 2180 mm |
T-slot | 18 / 5T | 18 / 5T | |
Table load capacity | 1500 kg | 1800 kg | |
TRAVELS | X-axis travel | 1700 mm | 2000 mm |
Y-axis travel | 850 mm | 850 mm | |
Z-axis travel | 710 mm | 710 mm | |
Spindle center to column | 870 mm | 870 mm | |
Spindle nose to table | 100~810 mm | 100~810 mm | |
SPINDLE | Taper of spindle nose | BT40 ( Opt. CAT40 or DAT 40 ) | |
Spindle speed | 6000 RPM ( Opt. 8000rpm or 10000rpm ) | ||
FEED | Rapid on X, Y, Z axis | 8000 mm/min (Opt. 20000 mm/min) | |
MOTOR | Spindle motor | 15 HP | 20 HP |
GENERAL | Power required | 30 kva | 30 kva |
Machine weight | 6500 kg | 7000 kg | |
Measurement ( L x W x H ) | 3000 x 2280 x 2550 mm | 3000 x 2280 x 2550 mm |
KM-220 | ||
TABLE | Table surface | 810 x 3000 mm |
T-slot | 18 / 5T | |
Table load capacity | 2000 kg | |
TRAVELS | X-axis travel | 25000 mm |
Y-axis travel | 850 mm | |
Z-axis travel | 710 mm | |
Spindle center to column | 870 mm | |
Spindle nose to table | 100~810 mm | |
SPINDLE | Taper of spindle nose | BT40 ( Opt. CAT40 or DAT 40 ) |
Spindle speed | 6000 RPM ( Opt. 8000rpm or 10000rpm ) | |
FEED | Rapid on X, Y, Z axis | 8000 mm/min (Opt. 20000 mm/min) |
MOTOR | Spindle motor | 20 HP |
GENERAL | Power required | 35 kva |
Machine weight | 10000 kg | |
Measurement ( L x W x H ) | 3500 x 2280 x 2550 mm |
ITEM | KM-500L | |
CNC CONTROL | Mitsubishi M70 | |
TRAVEL | X-axis | 550 mm |
Y-axis | 400 mm | |
Z-axis | 400 mm | |
Spindle nose to table | 100~500 mm | |
Spindle nose to column | 410 mm | |
Feed rate X/Y/Z | 36 M/min (Opt. 48M/min) | |
TABLE | T-solt | 14 x 100 x 3 mm |
Table loading capacity | 200 Kg | |
Table working surface | 600 x 400 mm | |
SPINDLE | Spindle speed | Direct-drive 12000 rpm (Standard) |
Spindle taper | MAS-BT30 | |
TOOL MAGAZINE | Tool holder | BT30 |
Tool storage capacity / type (pcs) | 20/Arm, 16/Arm (Opt.) | |
Tool change time | 0.8 sec | |
MOTOR | Spindle motor | 4.6 Kw |
X/Y/Z axis motor | 1.5 Kw / 1.5 Kw / 2.0 Kw | |
MACHINE SIZE | Machine dimension | 1950 x 2130 x 2155 mm |
Machine weight | 2800 Kg | |
ACCURACY (VDI 3441) | Positioning accuracy | ±0.004 |
Repeatability | ±0.002 |
